Instruments & sensor chips
Two benchtop systems built on the same photonic sensing core, and the sensor chips that run on both. Both chips listed here are regenerable and work unchanged across the inQuiQ and the inQuiQ 768.
Label-free biosensing instruments

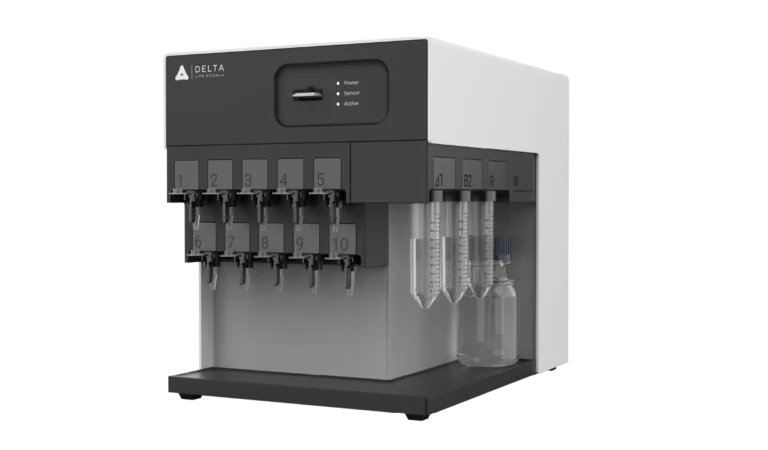

The inQuiQ
Sample capacity
10 × 1.5 mL or 2mL tubes
10 × 1.5 mL or 2mL tubes
Sample volume
30 µL
30 µL
Flowrate range
5 to 100 µL/min, up to 300 µL/min
5 to 100 µL/min, up to 300 µL/min
Affinity Range
10 pM to 10 mM
10 pM to 10 mM
The inQuiQ 768
Sample capacity
2 × 96 well-plates or 2 × 384 well-plates
2 × 96 well-plates or 2 × 384 well-plates
Sample loops
100 µL and 250 µL
100 µL and 250 µL
Flowrate range
5 to 100 µL/min, up to 300 µL/min
5 to 100 µL/min, up to 300 µL/min
Affinity Range
10 pM to 10 mM
10 pM to 10 mM
Sensor chips
HC1000M sensor chips
Flow-channels
4 channels, with 4 sensors each
4 channels, with 4 sensors each
Sensor surface
Antifouling hydrogel
Antifouling hydrogel
Best for
LMW analytes or concentration/quanitification
LMW analytes or concentration/quanitification
HC30M sensor chips
Flow-channels
4 channels, with 4 sensors each
4 channels, with 4 sensors each
Sensor surface
Antifouling hydrogel
Antifouling hydrogel
Best for
Affinity and kinetics analysis
Affinity and kinetics analysis
